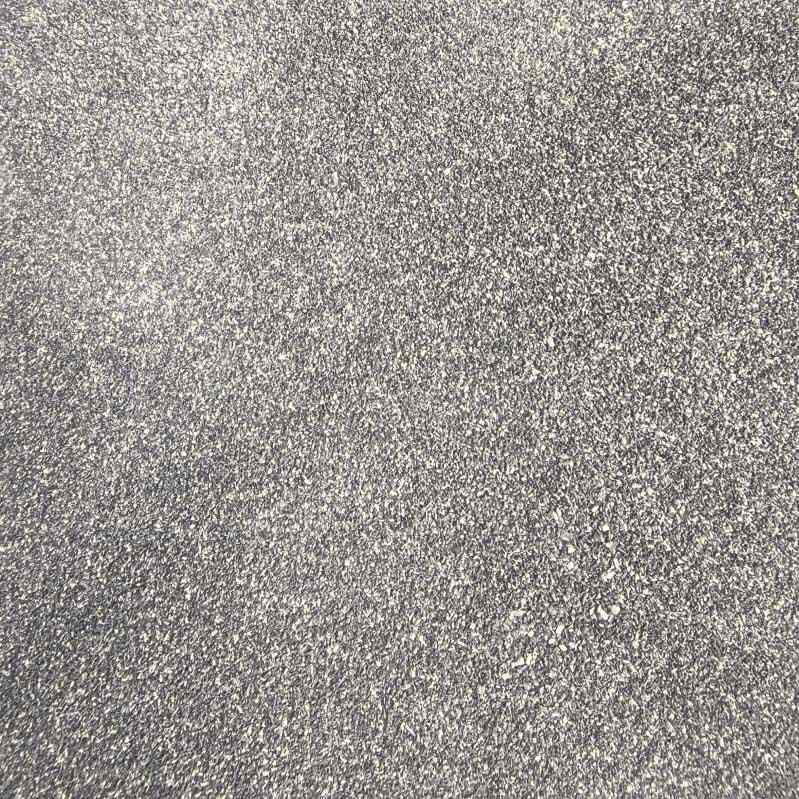

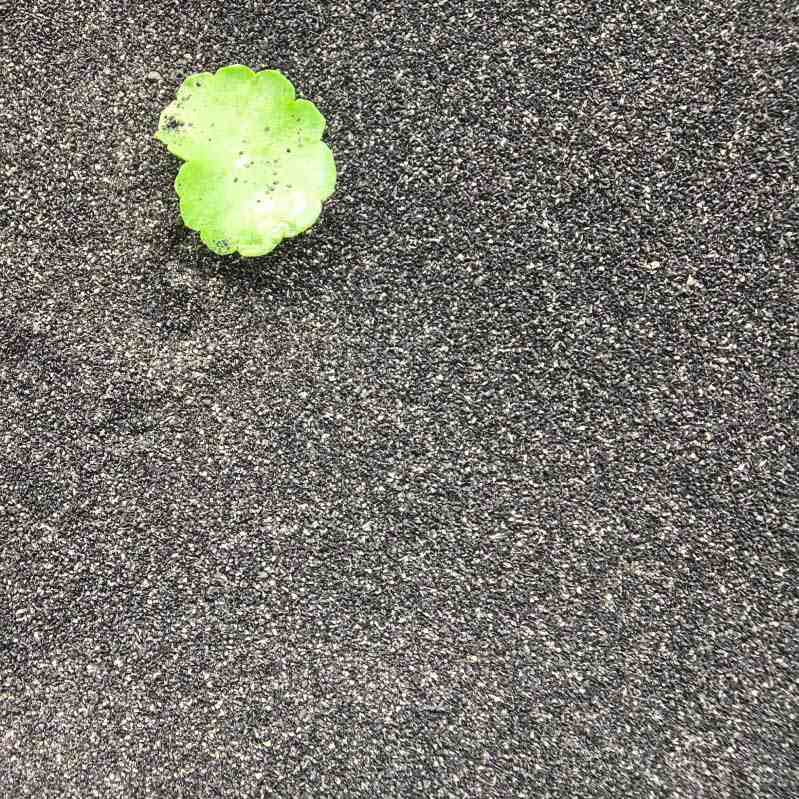

Electroplating Solution Purification Coconut Shell Carbon

In the fiercely competitive electroplating industry, customers are becoming increasingly discerning. A single burr on a plated surface—so minute it is barely visible to the naked eye—or a faint, hazy patch of mottling could directly result in the entire batch of workpieces being scrapped. Seasoned electroplating veterans understand that, beyond current waveforms and additive ratios, the cleanliness of the plating bath is the "invisible killer" that silently undermines yield rates.
The core consumable essential for maintaining this critical cleanliness is precisely what we offer: Huajing Activated Carbon. With nearly three decades of deep expertise in the field of fine chemical purification, we have developed this specialized Electroplating Solution Purification Coconut Shell Carbon specifically for use in continuous electroplating filtration systems.

Raw Material Advantages

The primary raw material for this activated carbon is sourced from mature coconut shells in Southeast Asia. We strictly adhere to a high-temperature physical activation process—rather than chemical methods—to ensure that the finished product remains chemically inert and absolutely stable within the complex, often acidic or alkaline, environment of a plating bath. This prevents "reverse contamination"—where soluble impurities leach out of the carbon itself and into the plating solution. By choosing Huajing’s specialized electroplating carbon, you are leveraging a tangible, visible material to secure an intangible—yet absolutely critical—standard of surface quality for your electroplated products.

How Does Activated Carbon Help You Save on Rework Costs?

During our visits to numerous hardware electroplating facilities across Zhejiang and Guangdong provinces, we frequently encountered a recurring question: "Is there an activated carbon product that can be immersed in a nickel plating tank without leaching strange substances that end up ruining the bath?" This straightforward inquiry strikes right at the technical core of our Electroplating Solution Purification Coconut Shell Carbon: the simple truth is that not all activated carbons are suitable for use in electroplating applications. Using the wrong type of activated carbon can lead to consequences ranging from minor issues—such as a hazy plating finish or the appearance of pinholes—to severe problems, such as the complete contamination and ruination of the plating bath.

Huajing Technology’s Key Strengths

1. Extremely Low Soluble Ash Content
This attribute is proven by our track record of trouble-free operation in HEDP copper plating and acidic nickel plating baths. Ordinary activated carbon contains trace amounts of metal oxide ash—such as calcium, magnesium, and iron—which dissolve into metal cations within acidic plating solutions, thereby interfering with the electrodeposition process. Our Electroplating Solution Purification Coconut Shell Carbon undergoes multiple stages of acid washing and deionized water rinsing to reduce these harmful ash impurities to levels well below safe thresholds.

2. Precise Adsorption of Organic Impurities
Decomposition products from brighteners, oil contaminants introduced by workpieces, and organic matter settling from the air all tend to accumulate gradually within plating baths. Huajing’s specialized activated carbon for electroplating is engineered to target these organic impurities—which vary widely in molecular weight—offering broad-spectrum adsorption efficiency that restores the plating bath to a crystal-clear state.

3. Optimal Particle Size and Hardness (80–100 Mesh)
This specific mesh range represents the preferred particle size we have identified through extensive validation via real-world customer operations. If the particles are too coarse, the specific surface area is reduced, resulting in insufficient adsorption efficiency; conversely, if they are too fine, they may easily pass through filter paper, be washed away during backwashing, or even cake onto the filter cartridge, leading to excessive pressure differentials. Our carbon granules undergo rigorous crushing and screening processes to ensure they form a uniform filter cake layer within the filtration equipment.

Recommended Applications

Circulation Purification of Plating Baths: For acidic copper, nickel, and tin alloy plating processes. The carbon is installed within the filter cartridges of continuous filtration systems to continuously adsorb mechanical impurities and organic residues from the tank solution.
Treatment of Electroless Nickel Plating Solutions: Removes reaction byproducts to maintain the stability of the plating bath and ensure a consistent deposition rate.
Recovery and Purification in Precious Metal Plating (Gold, Silver): Ensures the purity of the plating bath while simultaneously creating favorable conditions for subsequent precious metal recovery.

Technical Specifications

Usage Instructions and Precautions

Proper use of our Electroplating Solution Purification Coconut Shell Carbon maximizes purification efficiency and safeguards the plating bath:
1. Add at a dosage of 0.5%–2% relative to the plating bath volume; adjust the specific amount based on the degree of contamination.
2. Stir for 30–60 minutes to ensure thorough contact between the activated carbon and the plating solution.
3. Allow the mixture to settle for 2–4 hours, then filter to prevent carbon fines from entering the plating tank.
4. Replenish the carbon periodically in small batches rather than adding a large quantity all at once.
5. Store in a dry environment; avoid exposure to moisture, oil, or chemical contaminants.
6. Use specific batches for different plating processes; do not mix to prevent cross-contamination.

Why Choose Us?

Established in 1997, China Huajing is recognized as a National Key Leading Enterprise in Forestry, a High-Tech Enterprise, and a "Specialized, Refined, Special, and New" (SRSN) Enterprise in Hebei Province. We hold over 30 national patents and have established an Engineering Technology Research Center under the National Forestry and Grassland Administration, as well as three Academician Workstations. With an annual production capacity of 40,000 tons of activated carbon, we are one of the few domestic manufacturers capable of the large-scale, standardized production of coconut shell activated carbon specifically tailored for electroplating applications.
Our products are certified under ISO 9001, ISO 14001, and ISO 45001, and hold qualifications such as Water-Related Product Sanitary Licenses and the "Hebei Famous Brand Product" designation. We maintain professional and controllable standards across our entire value chain—from R&D and production to quality control—and have long provided stable supply and technical support to electroplating industrial parks and publicly listed companies.
